This machine is specially for drilling bottle molds, there are four spindles to drill at the same time
A series of deep hole drilling machine tools in the drill diameter range of and drilling depth up to 1000mm for off –center drilling micro gun drilling machine can be provided with 1,2, 4 or 6 spindles. configuration depending on drill diameter specification. All machines will be supplied fully guarded according to the CE specifications
Drilling coolant hole on glass bottle mold requires special knowledge on machine design.
Profidrill PDHG series multi spindle, knee type gun drilling machine is the most cost effective machine for glass bottle mold manufacturing.
PDHG series has precision ground ball screw and servo control with Siemens, Syntec, Fanuc or other CNC control. It has drilling capacity of – 15 (opt 20) mm with drilling depth upto 1,000 mm.
The simple fixturing allow customer to do quick change over between different molds.
The canned cycles in CNC control can be utilized with Cartesian or Polar programming for different hole ;
The high pressure coolant with oil chiller can reduce the cycle time to maximize the ;
All machines will be supplied fully guarded according to the CE specifications.

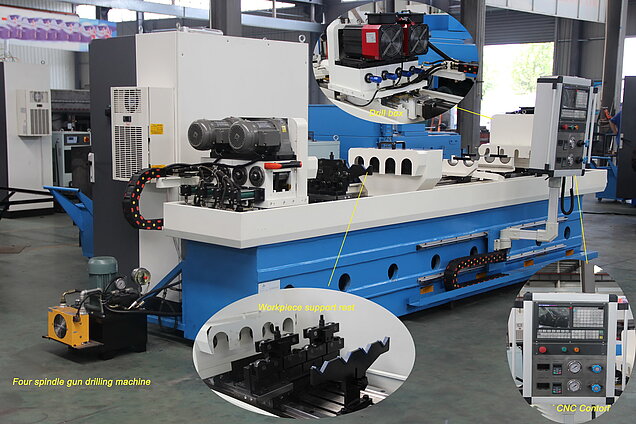

This machine is specially for drilling bottle molds, there are four spindles to drill at the same time controlled by two seperate servo motors. Deep Hole Drilling Machine for Glass Bottle Mould simple fixturing allow customer to do quick change over between different molds.
| Specification | Parameter | Remark | ||
|---|---|---|---|---|
| Working capacity | Drill hole diameter range | Φ3~Φ15mm | - | |
| Max. Drill depth | 1000mm | - | ||
| Max. Workpiece length | 1000mm | - | ||
| Max. Workpiece OD | Φ254mm | - | ||
| Machine features | X axis | Travel | 300mm | - |
| Rapid move speed | 3000mm/min | - | ||
| Motor torque | 10Nm | - | ||
| Y axis | Travel | 300mm | - | |
| Rapid move speed | 2000mm/min | - | ||
| Motor torque | 22Nm | - | ||
| Z axis/ | Infeeding speed range | 5~500mm/min | Stepless | |
| A axis | Rapid move speed | 3000mm/min | - | |
| Infeeding motor torque | 10Nm | - | ||
| Drill box | Rotary speed range | 500~6000r/min | Stepless | |
| Motor power | 5.5KW | Servo spindle motor | ||
| Coolant system | Pressure range | 1~10MPa | Adjustable | |
| Flow range | 6~200L/min | Adjustable | ||
| Filter accuracy | 20μm | - | ||
| Oil tank volume | >1000L |
